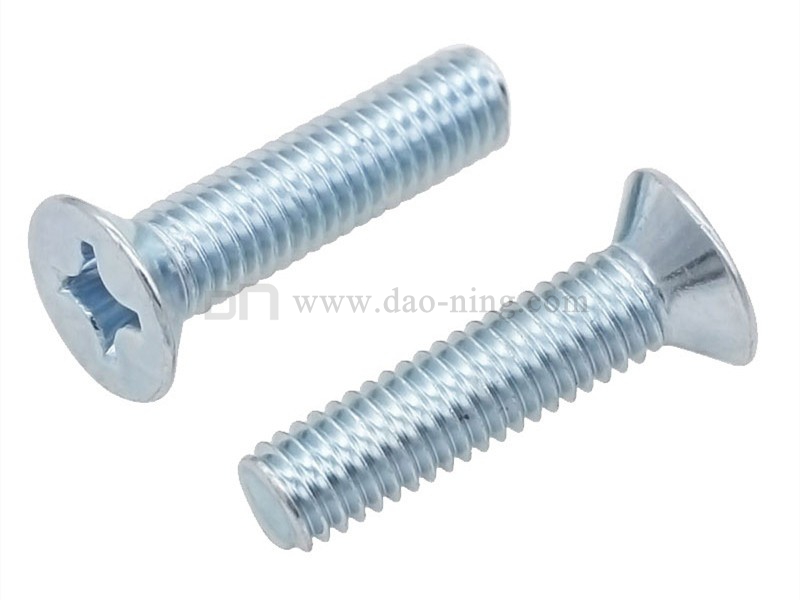

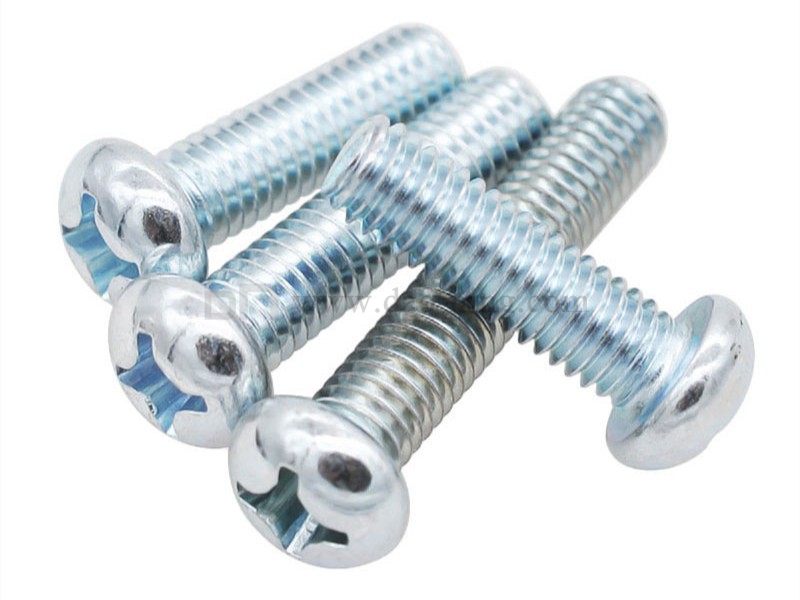

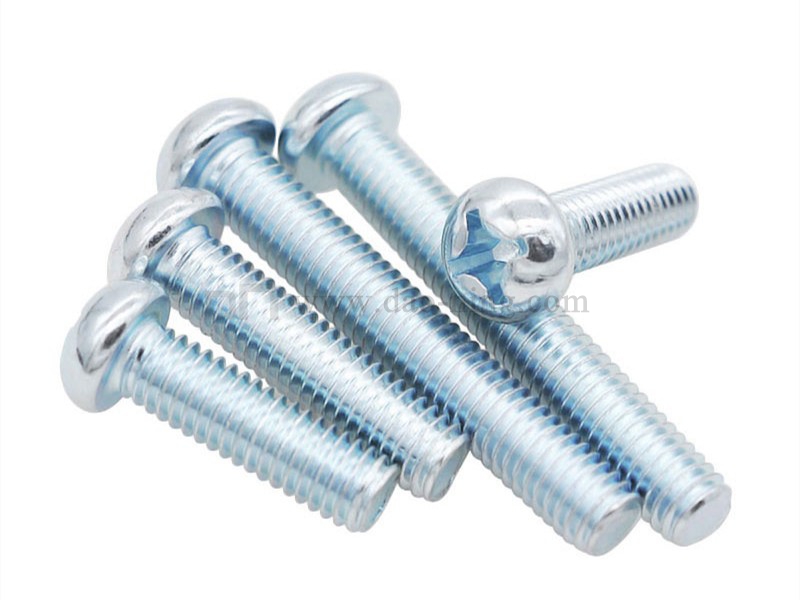

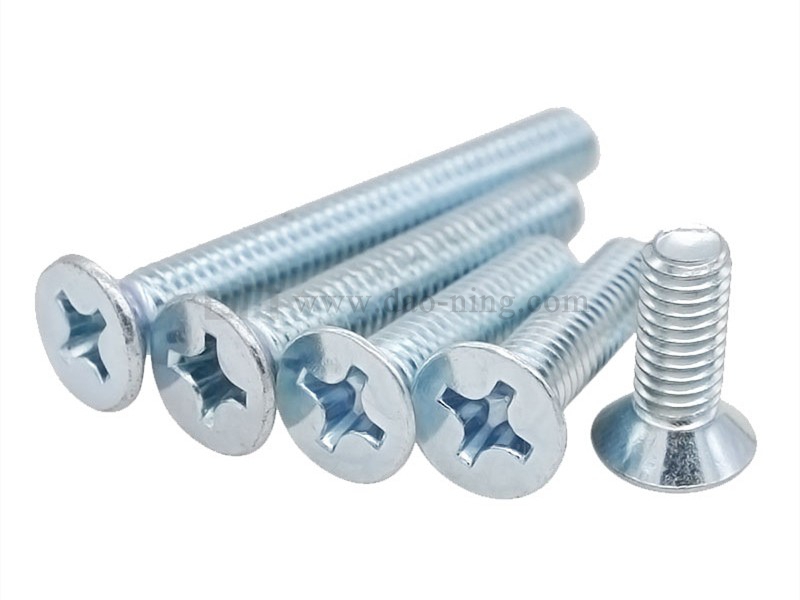

Philips Machine Screws
Machine screws | |
| Standard: | ASME/ANSI B18.6.2;ASME/ANSI 18.3;DIN84; DIN85;DIN963;DIN964;DIN427;DIN7985;DIN965; DIN966; DIN34802;ISO14580;ISO14581;ISO14584;ISO14584;ISO14579 |
| Size: | M1.6-M10 |
| Material: | Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: | 4.8, 5.8, 6.8, 8.8, 10.9, 12.9 |
| Thread: | M, UNC, UNF |
| Finish: | Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G |
| Packing: | bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand |
| Application: | Structural Steel; Metal Building; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating |
| Equipment: | Caliper,Go&No-go gauge,Tensile test machine,Hardness tester,Salt spraying tester,H.D.G thickness tester |
| Supply Ability: | 1000 tons per month |
| Minimum Order: | 500kgs for each specification |
| Trade Term: | FOB/CIF/CFR/CNF/EXW/DDU/DDP |
| Payment : | T/T, L/C, etc |
| Market: | South&north America/Europe/East&South east Asia/ Australia and etc. |
| Our advantage: | One-stop shopping; High quality; Competitive price; Timely delivery; Technical support; Supply Material and Test Reports; Samples for free |
| Notice: | Please lets know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us |
| Diameter | Pitch | dk | k (max) | Drive |
| M1.6 | 0.35 | 3.00-2.75 | 0.96 | #0 |
| M2 | 0.40 | 3.80-3.50 | 1.20 | #1 |
| M2.5 | 0.45 | 4.70-4.40 | 1.50 | #1 |
| M3 | 0.50 | 5.60-5.30 | 1.65 | #1 |
| M3.5 | 0.60 | 6.50-6.14 | 1.93 | #2 |
| M4 | 0.70 | 7.50-7.14 | 2.20 | #2 |
| M5 | 0.80 | 9.20-8.84 | 2.50 | #2 |
| M6 | 1.00 | 11.00-10.57 | 3.00 | #3 |
| M8 | 1.25 | 14.50-14.07 | 4.00 | #4 |
| M10 | 1.50 | 18.00-17.57 | 5.00 | #4 |
| Diameter (d) | Pitch | dk | k | Drive |
| M1.6 | 0.35 | 3.20-2.90 | 1.42-1.18 | #0 |
| M2 | 0.40 | 4.00-3.70 | 1.72-1.48 | #1 |
| M2.5 | 0.45 | 5.00-4.70 | 2.12-1.88 | #1 |
| M3 | 0.50 | 6.00-5.70 | 2.52-2.28 | #1 |
| M3.5 | 0.60 | 7.00-6.64 | 2.82-2.58 | #2 |
| M4 | 0.70 | 8.00-7.64 | 3.25-2.95 | #2 |
| M5 | 0.80 | 10.00-9.64 | 3.95-3.65 | #2 |
| M6 | 1.00 | 12.00-11.57 | 4.75-4.45 | #3 |
| M8 | 1.25 | 16.00-15.57 | 6.15-5.85 | #4 |
| M10 | 1.50 | 20.00-19.48 | 7.68-7.32 | #4 |
