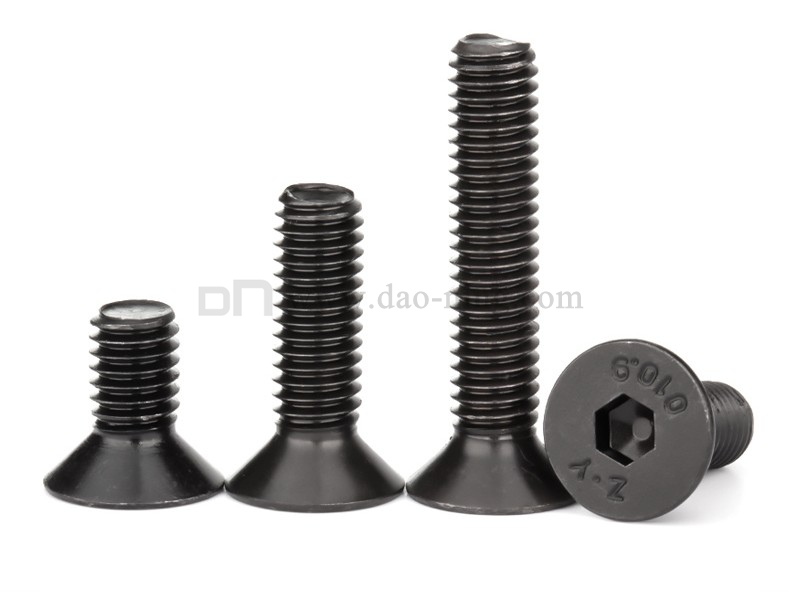

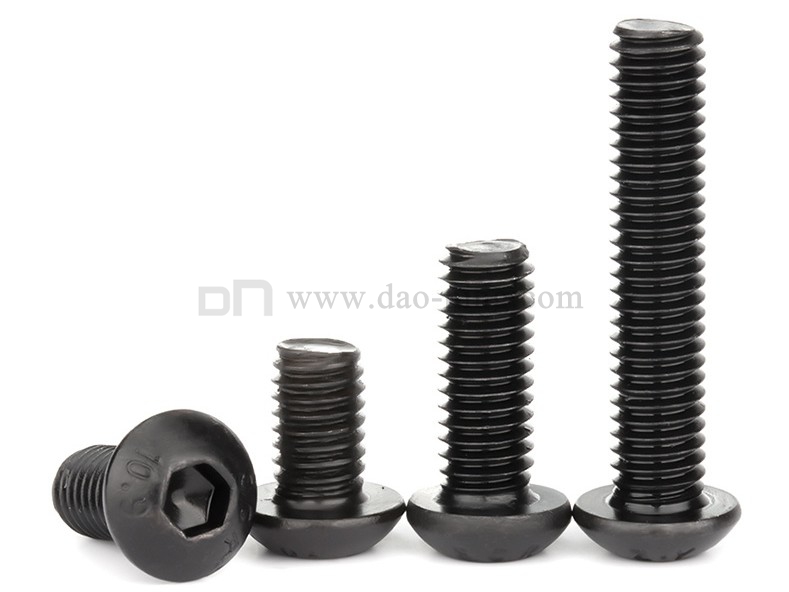

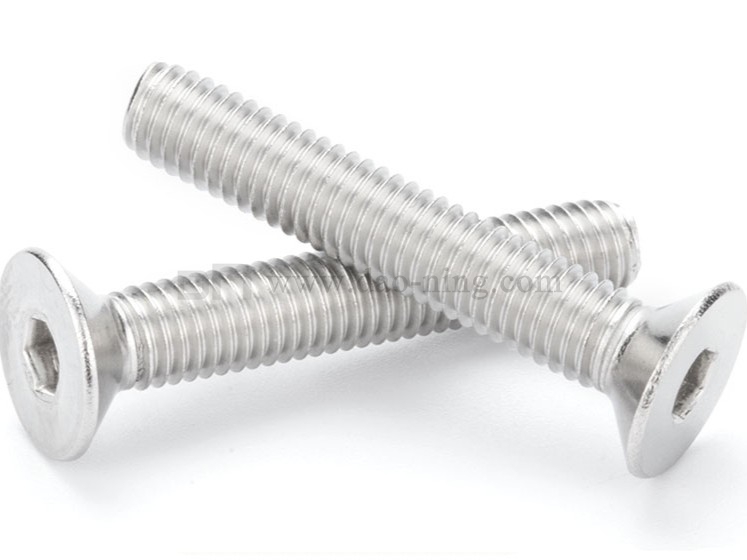

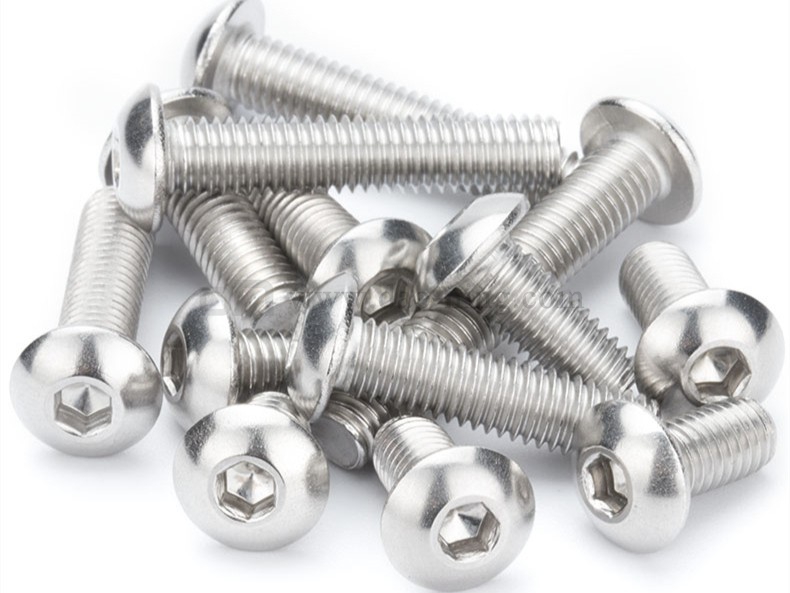

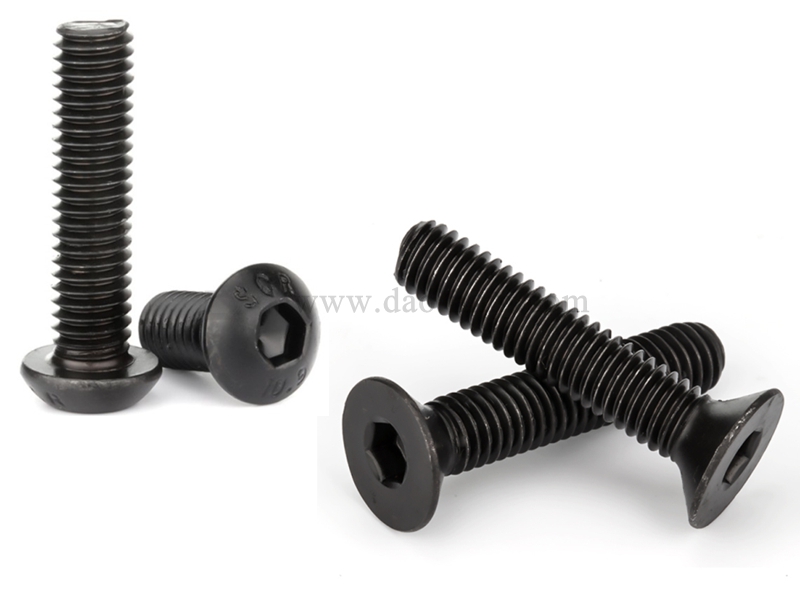

Socket Machine Screws
Socket machine Screw | |
| Standard: | AMSE B18.3; DIN7991; ISO10642;ISO7380; GB70.2; GB70.3 |
| Size: | #0-1-1/2”; M3-M20 |
| Material: | Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: | ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9 |
| Thread: | M, UNC, UNF |
| Finish: | Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G |
| Packing: | bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand |
| Application: | Structural Steel; Metal Building; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating |
| Equipment: | Caliper,Go&No-go gauge,Tensile test machine,Hardness tester,Salt spraying tester,H.D.G thickness tester |
| Supply Ability: | 1000 tons per month |
| Minimum Order: | 500kgs for each specification |
| Trade Term: | FOB/CIF/CFR/CNF/EXW/DDU/DDP |
| Payment : | T/T, L/C, etc |
| Market: | South&north America/Europe/East&South east Asia/ Australia and etc. |
| Our advantage: | One-stop shopping; High quality; Competitive price; Timely delivery; Technical support; Supply Material and Test Reports; Samples for free |
| Notice: | Please lets know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us |
| Diameter(d) | Pitch | dk | k (max) | s (nom) | t (max) | a |
| M2 | 0.40 | 3.80-3.66 | 1.24 | 1.27 | 0.65 | 90 |
| M2.5 | 0.45 | 4.80-4.66 | 1.55 | 1.50 | 0.80 | 90 |
| M3 | 0.50 | 6.00-5.70 | 1.70 | 2.0 | 1.20 | 90 |
| M3.5 | 0.60 | 6.30 nom | 2.20 | 2.0 | 1.30 | 90 |
| M4 | 0.70 | 8.00-7.64 | 2.30 | 2.5 | 1.80 | 90 |
| M5 | 0.80 | 10.00-9.64 | 2.80 | 3.0 | 2.30 | 90 |
| M6 | 1.00 | 12.00-11.57 3.30 | 4.0 | 2.50 | 90 | |
| M8 | 1.25 | 16.00-15.57 4.40 | 5.0 | 3.5 | 90 | |
| M10 | 1.50 | 20.00-19.48 5.50 | 6.0 | 4.40 | 90 | |
| M12 | 1.75 | 24.00-23.48 6.50 | 8.0 | 4.60 | 90 | |
| M16 | 2.00 | 30.00-29.48 7.50 | 10 | 5.30 | 90 | |
| M20 | 2.50 | 36.00-35.38 8.50 | 12 | 5.90 | 90 | |
| M24 | 3.00 | 39.00-38.38 14.0 | 14 | 10.3 | 60 | |
| Diameter (d) | Pitch | dk | k | s (nom) | t (min) |
| M2 | 0.40 | 3.50-3.30 | 1.30-1.10 | 1.3 | 0.80 |
| M2.5 | 0.45 | 4.50-4.30 | 1.50-1.30 | 1.5 | 1.00 |
| M3 | 0.50 | 5.70-5.40 | 1.65-1.40 | 2.0 | 1.04 |
| M3.5 | 0.60 | 6.60-6.30 | 1.90-1.65 | 2.0 | 1.20 |
| M4 | 0.70 | 7.60-7.24 | 2.20-1.95 | 2.5 | 1.30 |
| M5 | 0.80 | 9.50-9.14 | 2.75-2.50 | 3.0 | 1.56 |
| M6 | 1.00 | 10.50-10.07 | 3.30-3.00 | 4.0 | 2.08 |
| M8 | 1.25 | 14.00-13.57 | 4.40-4.10 | 5.0 | 2.60 |
| M10 | 1.50 | 17.50-17.07 | 5.50-5.20 | 6.0 | 3.12 |
| M12 | 1.75 | 21.00-20.46 | 6.60-6.24 | 8.0 | 4.16 |
