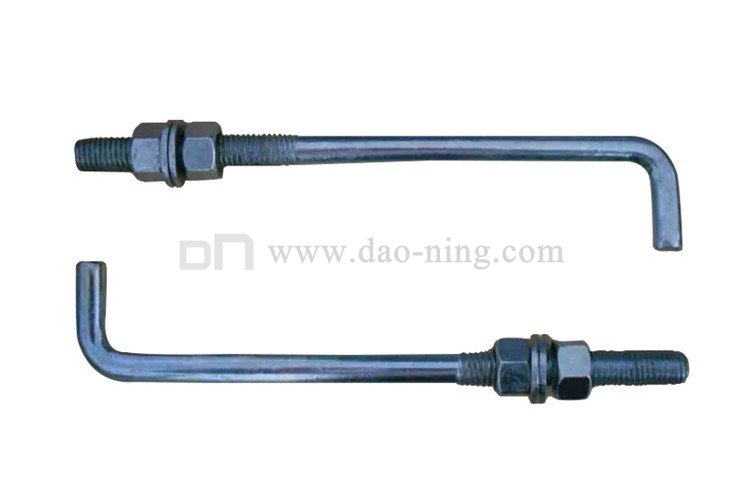

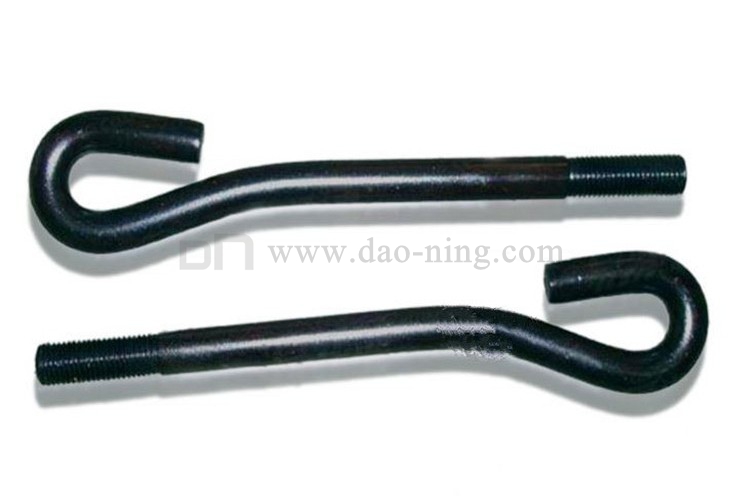

Foundation Bolts
|
Standard: |
DIN, JB,JIS,GB |
|
Size: |
1/4”-3”,M6-M64 |
|
Material: |
Carbon Steel, Alloy Steel, Stainless Steel, Brass |
|
Grade: |
SAE J429 Gr.2,5,8; ASTM A307Gr.A; Class 4.8,5.8,6.8,8.8,10.9,12.9 |
|
Thread: |
M, UNC, UNF |
|
Finish: |
Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G |
|
Packing: |
bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand |
|
Application: |
Structural Steel;Metal Building;Oil&Gas;Tower&Pole;Wind Energy;Mechanical Machine;Automobile;Home Decorating |
|
Equipment: |
Caliper, Go&No-go gauge, Tensile test machine, Hardness tester, Salt spraying tester, H.D.G thickness tester |
|
Supply Ability: |
1000 tons per month |
|
Minimum Order: |
500kgs for each specification |
|
Trade Term: |
FOB/CIF/CFR/CNF/EXW/DDU/DDP |
|
Payment : |
T/T, L/C, etc |
|
Market: |
South&north America/Europe/East&South east Asia/ Australia and etc. |
|
Our advantage: |
One-stop shopping; High quality; Competitive price; Timely delivery; Technical support; Supply Material and Test Reports; Samples for free |
|
Notice: |
Please lets know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us |
|
Diameter (d) |
Pitch |
b+2p |
n(max) |
S(max) S(min) | |
|
M8 |
1.25 |
20 |
25 |
55 |
35 |
|
M10 |
1.50 |
25 |
32 |
55 |
45 |
|
M12 |
1.75 |
30 |
40 |
70 |
55 |
|
M16 |
2.00 |
40 |
55 |
90 |
70 |
|
M20 |
2.50 |
50 |
65 |
110 |
85 |
|
M24 |
3.00 |
60 |
80 |
130 |
100 |
|
M30 |
3.50 |
75 |
100 |
160 |
120 |
|
M36 |
4.00 |
90 |
120 |
190 |
140 |
|
M42 |
4.50 |
105 |
140 |
230 |
160 |
|
M48 |
5.00 |
120 |
160 |
260 |
180 |
|
M56 |
5.50 |
140 |
185 |
290 |
210 |
|
M64 |
6.00 |
160 |
210 |
340 |
250 |
|
M72 |
6.00 |
180 |
250 |
370 |
290 |
